OPT & Examination Lights

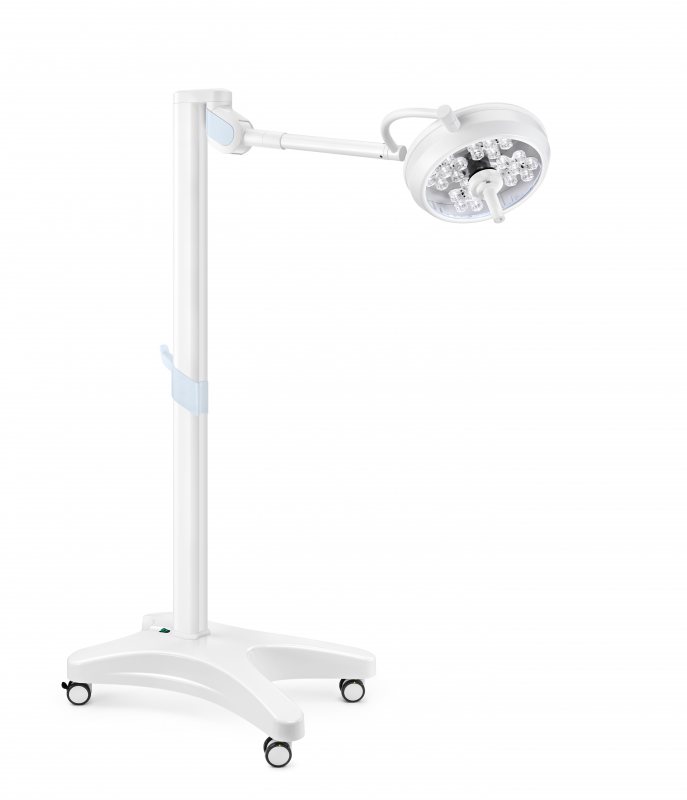

OPT light
GSRITRISLED
Technical data:
- Light intensity at 1m distance (Ec): 100.000 Lux
- Color temperature: 4.300K
- Color rendering index (CRI): 96
- R9: ≥90
- No. of Leds: 28
- Diameter and focus adjustment: Manual
- Light field diameter adjustable: 26 - 38 cm
- d10 light field diameter where illuminance reaches 10% of Ec: 240 mm
- d50 light field diameter where illuminance reaches 50% of Ec: 120 mm
- Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 82 cm
- Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 148 cm
- Control of the illuminance (%): 25-100 in 7 steps
- Total radiated energy Ee where the illuminance reaches max level: 280 W/m2
- Ratio between radiated energy Ee and illuminance Ec: 2,79 mW/m2.lx
- Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
- Average Led life: > 50.000 hours
- Electrical data Primary voltage: 100 - 240 V
- Secondary voltage: 24 V
- Frequency: 50 - 60 Hz
- Absorbed power: 70 VA
Mounting options:
- Ceiling suspended
- Wall mounted
- Mobile on four castors
