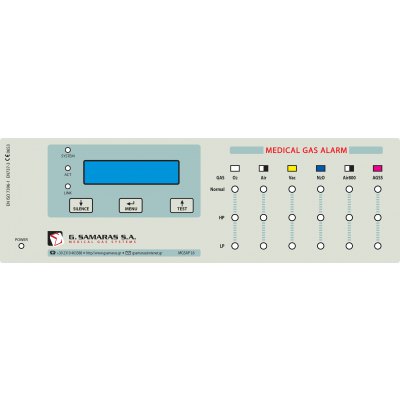

Alarm systems for medical gas panels

Product Features:

- Microprocessor based design providing powerful functionality

- Up to 9 inputs (6 provided as standard and 3 as option), 4…20 mA range, 10 Bit resolution, for measurements of medical gas pressures, flow or other physical value( two or three wire current loop transducers)

- Up to 12 independent digital inputs for monitoring of medical gas pressures( pressure switches, dry contacts for normal pressure level indication as well as high / low limit-alarm)

- For each measurement visual indicators (3 led, one green led for Normal, one red for High alarm and one red for Low alarm) acc to HTM 2021 and EN ISO 7396-1

- For each measurement, an output is provided for remote alarm signalling (totally 6 outputs). Each Output is Open Drain as standard or optionally Relay (dry contacts C/NO)

- Built in LCD screen (2×16 characters) for displaying all measurements

- Three push buttons for viewing selection and other monitoring operations, temporary silence and test function provided

- Audible signal for High/Low alarm condition

- Alarm/event report and log file (up to 100 records)

- Power led indicator, and additional three status led indicators

- Built in RJ45 port for Ethernet connection (1 port, 10/100 Base-T) for web interface (as standard)

- All names ,units, alarm limits, analog/digital selection etc, are user programmable via user friendly web interface using any internet browser.

- MODBUS TCP/IP supported for connection to BMS systems (as standard)

- On site firmware update/upgrade capability • Ready to use, acc to customer specs (customers definitions required before shipping)

- 230 Vac 50/60 Hz built in power supply (double insulated transformer)
