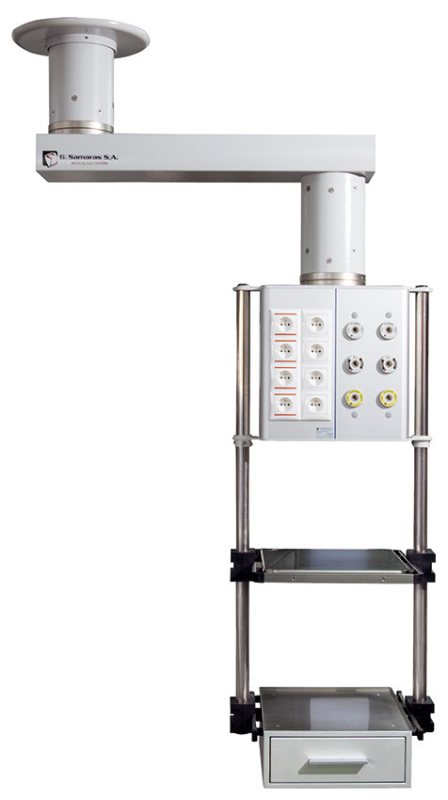

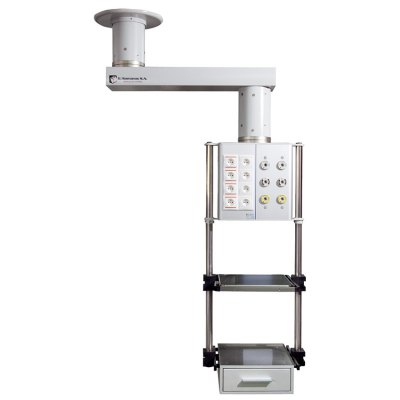

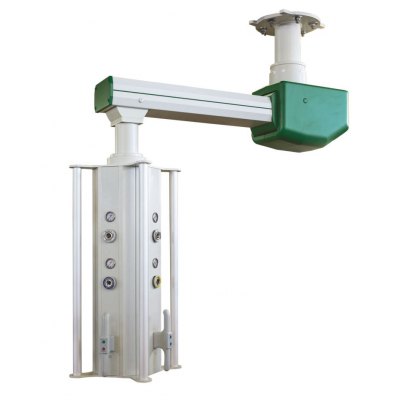

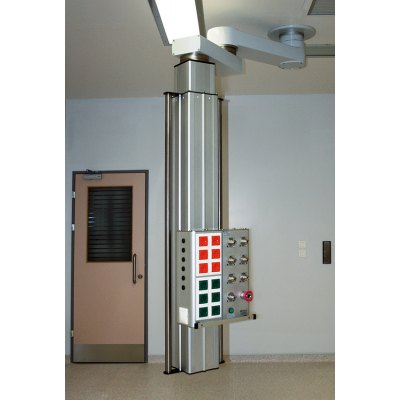

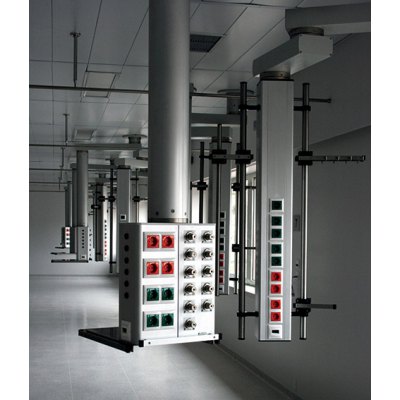

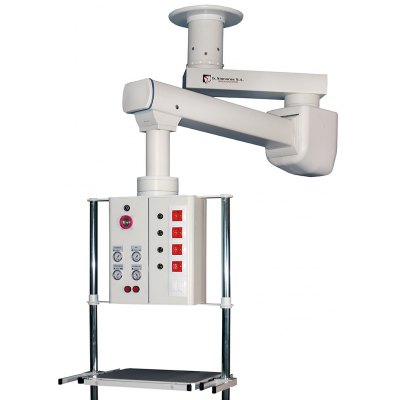

VERGINA Version IV pendant arm has been created for grouping all the necessary electrical, data and medical gases services, required for use in operating theaters in anesthetic & surgical rooms and intensive care areas.
These ceiling pendants are manufactured and installed to the customer’s specifications to suit a particular location and purpose. The installed position ensures that the outlets can be placed immediately above the medical equipments or the anesthetic machine, there by removing the hazard of trailing hoses and cables.
The unit is manufactured totally of special extruded anodized aluminum profiles and consists of the below main parts:
- Ceiling plate support system
- One horizontal alluminum arm
- Technical box with the aluminum suspension tube and two stainless steel tubes Ø38mm for the suspension of various appliances
Technical characteristics:
-
Horizontal rotation in two axis max (340º+340º). The rotation on first bearing can be manually adjusted every 30º on 12 positions.
-
One horizontal arm (900mm) adjustable dimensions

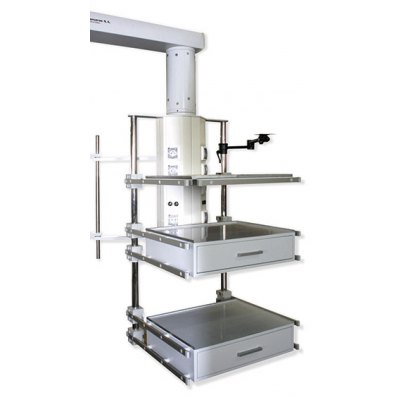

- One stainless steel or alluminum electrostatic painted monitor table (400x350mm) adjustable dimensions
-
One steel electrostatic painted drawer (400x350x150mm) with stainless steel surface adjustable dimensions
-
Mechanic brake (Optional pneumatic brake)
-
Load capability: 200kg
-
Pendant weight: 125kg
More monitor tables or drawers can be adjusted according to customer needs.
Technical box specifications for Anesthesiologist:
- 8 electrical sockets 10/16A - 250V~ color: red(UPS) or green(Generator)
- 1 ground bar for electrical sockets
- 4 equipotential sockets DIN 42801/2
- 2 data or telephone sockets RJ45 cat.6 or cat.5e
- Optional: simple button or handle button for pneumatic brake
- 7 medical gas outlets (2xO2 – 2xVac – 2xAir – 1xN2O) according ISO 9170-1
- 1 AGSS outlet according to ISO 9170-2
- 3 manometers and one vacuum gauge for pressure indication
- 1 bar of equipotential grounding system and grounding of metallic parts
Technical box specifications for Surgeon:
- 8 electrical sockets 10/16A - 250V~ color: red(UPS) or green(Generator)
- 1 ground bar for electrical sockets
- 4 equipotential sockets DIN 42801/2
- 2 data or telephone sockets RJ45 cat.6 or cat.5e
- Optional: simple button or handle button for pneumatic brake
- 5 medical gas outlets (1xO2 – 2xVac – 1xAir – 1xAir800) according ISO 9170-1
- 3 manometers and one vacuum gauge for pressure indication
- 1 bar of equipotential grounding system and grounding of metallic parts
Technical box specifications for I.C.U.:
- 12 electrical sockets 10/16A - 250V~ color: red(UPS) or green(Generator)
- 1 ground bar for electrical sockets
- 6 equipotential sockets DIN 42801/2
- 2 data or telephone sockets RJ45 cat.6 or cat.5e
- Optional: simple button or handle button for pneumatic brake
- 6 medical gas outlets (4xO2 – 4xVac – 4xAir) according ISO 9170-1
- 2 manometers and one vacuum gauge for pressure indication
- 1 bar of equipotential grounding system and grounding of metallic parts
All technical box specifications can be adjusted according to customer needs.
VERGINA pendant arm is manufactured and tested to comply with the European Standards ISO 11197, ISO 5359, ISO 7396-1&2 and ISO 9170-1&2 and it is labeled with CE to guarantee a high level of safety for patient and personnel.
