OPT & examination lights

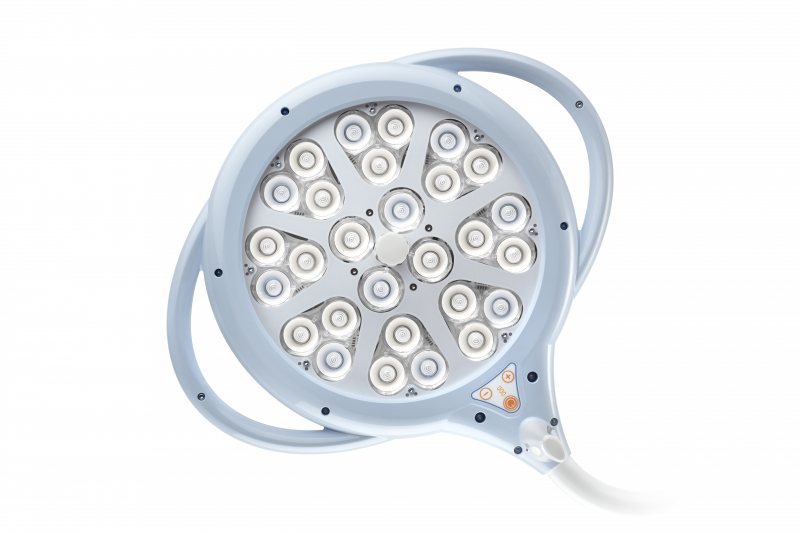

Examination Light with LED Technology

GSRIPENTALED 28

Technical data:

  • Light intensity at 1 m distance (Ec): 80.000 (5.000K) / 50.000 (4.500K) Lux
  • Colour temperature: 4.500 / 5.000 K
  • Colour Rendering Index (CRI): Ra 92 (5.000K) / 96 (4.500K)
  • Light field diameter where the illuminance reaches 50% of Ec (d50): 135 mm
  • Light field diameter where the illuminance reaches 10% of Ec (d10): 270 mm
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 60% of Ec: 58 cm (28+30)
  • Total radiated energy Ee where the illuminance reaches max level: 220 W/m2
  • Ratio between radiated energy Ee and illuminance Ec: 2,64 mW/m2.lx
  • Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
  • R9: 90 (5.000K) / 92 (4.500K)
  • Power transformer a.c.: 100 ÷ 240 V
  • Frequency: 50/60 Hz
  • Electrical absorption: 81 VA
  • Led no. : 28
  • Average led life: 50.000 hours
  • Control of the illuminance %: 20 ÷ 100



Mounting options:

  • Ceiling suspended
  • Wall mounted
  • Mobile on four castors
