OPT & Examination Lights

OPT light

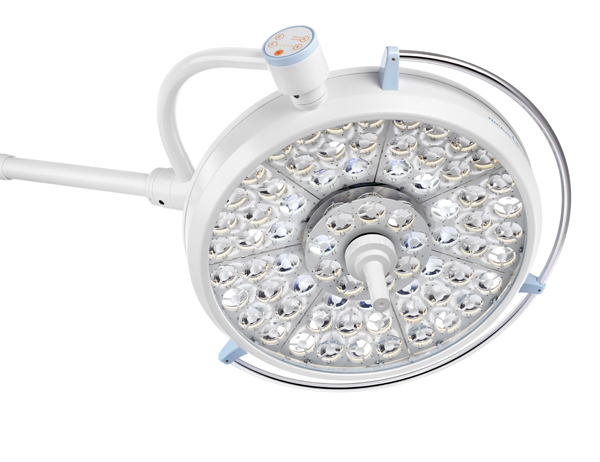

GSRIPENTALED 63N

Technical data:

  • Light intensity at 1m distance (Ec): 160.000 Lux
  • Color temperature: double selection: 4500 / 5000° K
  • Color rendering index (CRI): 96 Ra
  • R9: ≥ 90
  • No. of Leds: 72
  • Diameter and focus adjustment: Manual
  • Light field diameter adjustable: 21 – 42 cm
  • d10 light field diameter where illuminance reaches 10% of Ec (small ø): 210 mm (160 klx)
  • d10 light field diameter where illuminance reaches 10% of Ec (big ø): 420 mm (40 klx)
  • d50 light field diameter where illuminance reaches 50% of Ec (small ø): 120 mm (160 klx)
  • d50 light field diameter where illuminance reaches 50% of Ec (big ø): 260 mm (40 klx)
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 46 cm
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 115 cm
  • Control of the illuminance (%): 25 - 100
  • Total radiated energy Ee where the illuminance reaches max level: 399 W/m2
  • Ratio between radiated energy Ee and illuminance Ec: 2,61 mW/m2.lx
  • Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
  • Average Led life: > 50.000 hours
  • EndoLED light intensity min-max: 5.000 – 20.000 Lux
  • Primary alternating voltage (a.c.): 100 - 240 V
  • Secondary continue voltage (d.c): 24 V
  • Frequency: 50 - 60 Hz
  • Absorbed power: 145 VA



Mounting options:

  • Ceiling suspended
  • Mobile on four castors
