OPT & Examination Lights

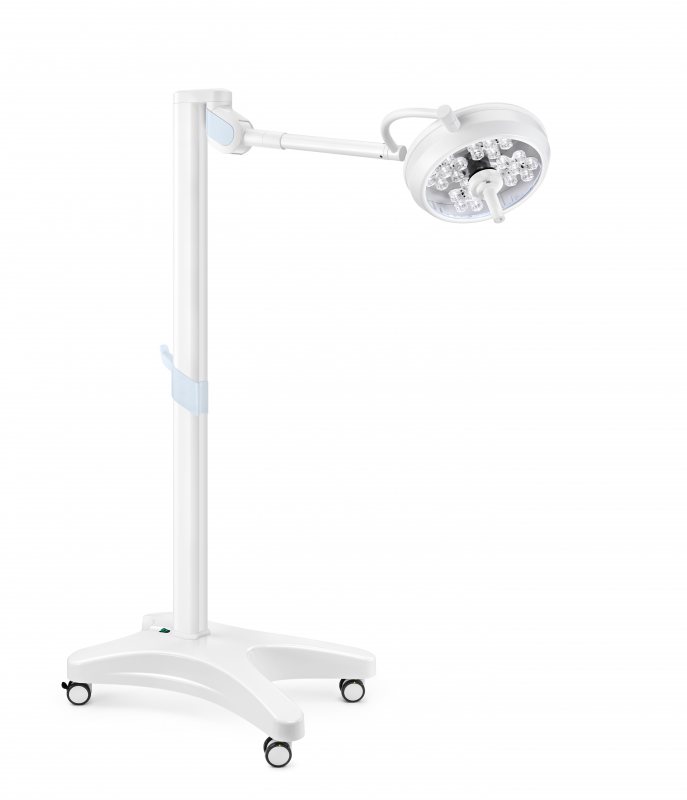

OPT light

GSRITRISLED

Technical data:

  • Light intensity at 1m distance (Ec): 100.000 Lux
  • Color temperature: 4.300K
  • Color rendering index (CRI): 96
  • R9: ≥90
  • No. of Leds: 28
  • Diameter and focus adjustment: Manual
  • Light field diameter adjustable: 26 - 38 cm
  • d10 light field diameter where illuminance reaches 10% of Ec: 240 mm
  • d50 light field diameter where illuminance reaches 50% of Ec: 120 mm
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 82 cm
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 148 cm
  • Control of the illuminance (%): 25-100 in 7 steps
  • Total radiated energy Ee where the illuminance reaches max level: 280 W/m2
  • Ratio between radiated energy Ee and illuminance Ec: 2,79 mW/m2.lx
  • Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
  • Average Led life: > 50.000 hours
  • Electrical data Primary voltage: 100 - 240 V
  • Secondary voltage: 24 V
  • Frequency: 50 - 60 Hz
  • Absorbed power: 70 VA



Mounting options:

  • Ceiling suspended
  • Wall mounted
  • Mobile on four castors
