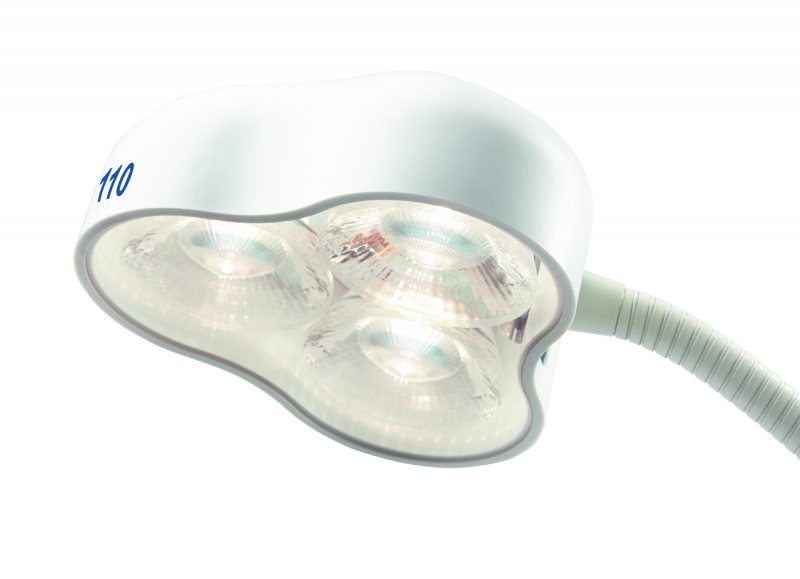

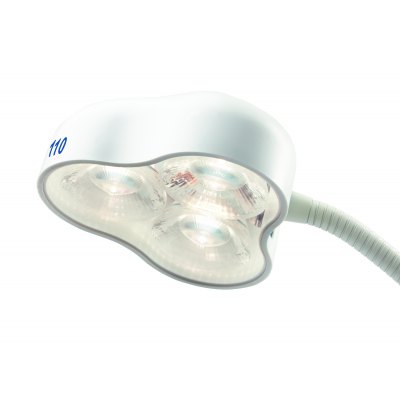

Spot light with LED technology

GSDMLED 110

Technical data:

  • Central light intensity at a distance of 0,5 meters: 30.000 Lux
  • Central light intensity at a distance of 1,0 meters: 7.800 Lux
  • Light field diameter d10 at a distance of 0,5 meters: 104 mm
  • Light field diameter d10 at a distance of 1,0 meters: 163 mm
  • Light field diameter d50 at a distance of 0,5 meters: 61 mm
  • Light field diameter d50 at a distance of 1,0 meters: 116 mm
  • Light intensity with one shadower at a distance of 1,0 meters: 0 %
  • Light intensity with two shadowers at a distance of 1,0 meters: 72 %
  • Light intensity on the ground of anormed tube at a distance of 1,0 meters: 100%
  • Light intensity on the ground of a normed tube with one shadower at a distance of 1,0 meters: 0 %
  • Light intensity on the ground of a normed tube with two shadowers at a distance of 1,0 meters: 72 %
  • Illumination depth 60 %: 1230 mm
  • Colour rendering index Ra: 95
  • Colour rendering index R9: 90
  • Max. radiation in field in a distance of 1 meter: 29 W/m²
  • Max. radiation in field: 205 W/m²
  • Light field size at a distance of 0,5 meters: 10 cm
  • Light field size at a distance of 1,0 meters: 16 cm
  • Colour temperature (Kelvin): 4000 K
  • Temperature increase in head area: 0,5 °C
  • Number of LED’s: 3
  • Life span of LED’s: ≥ 40.000 h
  • Light head diameter: 12 cm
  • Power consumption: 7 W
  • Voltage: 12 V
  • Current: 0,08 A



Mounting options:

  • With fixation clamp for supply rails
  • With fixation on round and rectangular tubes
  • With fixation plate
  • Table mounted light with fixation clamp
  • Wall mounted
  • Mobile on five castors
