OPT & examination lights

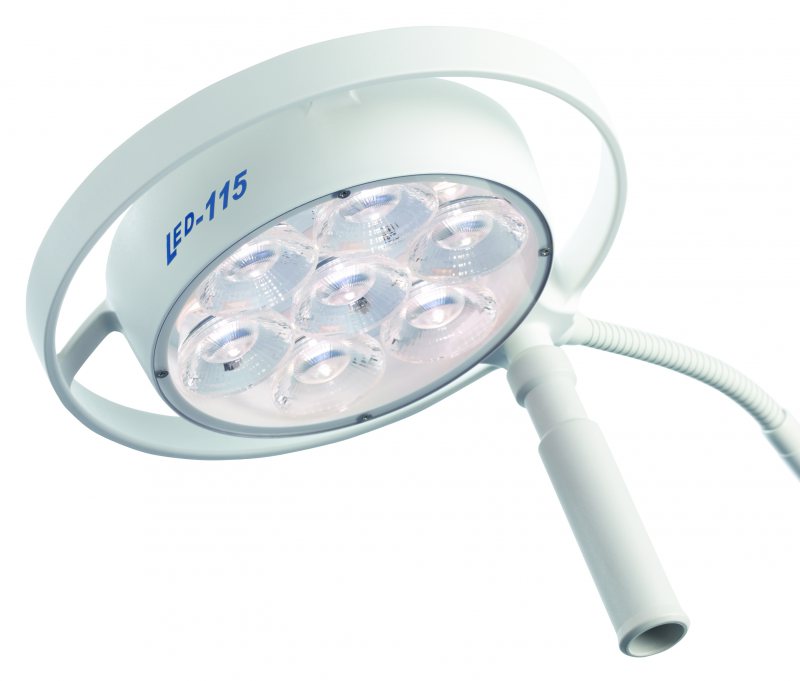

Examination Light with LED Technology

GSDMLED 115C

Technical data:

  • Central light intensity at a distance of 0,5 meter: 60.000 Lux
  • Central light intensity at a distance of 1 meter: 14.000 Lux
  • Light field diameter d10 at a distance of 0,5 meters: 103 mm
  • Light field diameter d10 at a distance of 1 meter: 228 mm
  • Light field diameter d50 at a distance of 0,5 meters: 60 mm
  • Light field diameter d50 at a distance of 1 meter: 103 mm
  • Light intensity with one shadower: 0 %
  • Light intensity with two shadowers: 78 %
  • Light intensity on the ground of a normed tube: 100%
  • Light intensity on the ground of a normed tube with one shadower: 0 %
  • Light intensity on the ground of a normed tube with two shadowers: 78 %
  • Illumination depth 60 %: 1180 mm
  • Colour rendering index Ra: 95
  • Colour rendering index R9: 90
  • Max. radiation in field in a distance of 1 meter: 51 W/m²
  • Max. radiation in field in a distance of 0,30 meters: 330 W/m²
  • Light field size 10 cm
  • Colour temperature (Kelvin): 3600/3900/4200 K
  • Temperature increase in head area: 0,5 °C
  • Number of LED’s: 7
  • Life span of LED’s: ≥ 40.000 h
  • Light head diameter: 22 cm
  • Power consumption: 10 W
  • Operating voltage DC: 24 V DC
  • Current: 0,42 A



Mounting options:

  • With fixation clamp for supply rails
  • With fixation on round and rectangular tubes
  • With fixation plate
  • Table mounted light with fixation clamp
  • Wall mounted
  • Mobile on five castors
