OPT & Examination Lights

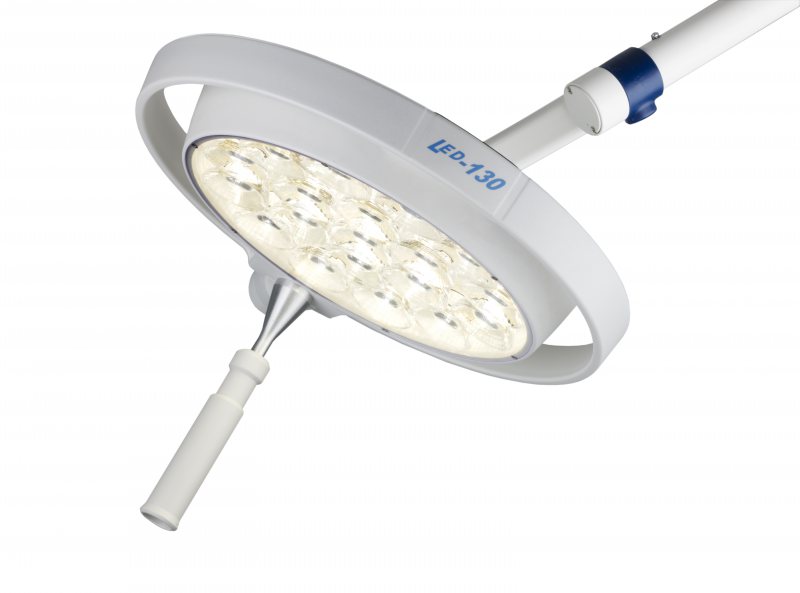

Compact examination light with LED-technology

GSDMLED 130F

Technical data:

  • Central light intensity at a distance of 1 meter: 70.000 Lux
  • Light field diameter d10: 128 mm
  • Light field diameter d50: 65 mm
  • Light intensity with one shadower: 0 %
  • Light intensity with two shadowers: 46 %
  • Light intensity on the ground of a normed tube: 100%
  • Light intensity on the ground of a normed tube with one shadower: 0 %
  • Light intensity on the ground of a normed tube with two shadowers: 46 %
  • Illumination depth 20 %: 1750 mm
  • Illumination depth 60 %: 650 mm
  • Colour rendering index Ra: 95
  • Colour rendering index R9: 90
  • Max. radiation in field in a distance of 1 meter: 250 W/m²
  • Max. radiation in field in a distance of 0,80 meters: 270 W/m²
  • Light field size 14 - 25 cm
  • Colour temperature (Kelvin): 4300 K
  • Electronic light intensity control at the light head: 50 - 100%
  • Temperature increase in head area: 0,5 °C
  • Number of LED’s: 19
  • Life span of LED’s: ≥ 40.000 h
  • Working distance: 70 -140 cm
  • Light head diameter: 33 cm
  • Height adjustment: 123 cm
  • Power consumption: 28 W
  • Operating voltage DC: 24 V DC
  • Current: 1,2 A



Mounting options:

  • Ceiling suspended
  • Wall mounted
  • Mobile on four castors
  • Mobile on five castors
