OPT & examination lights

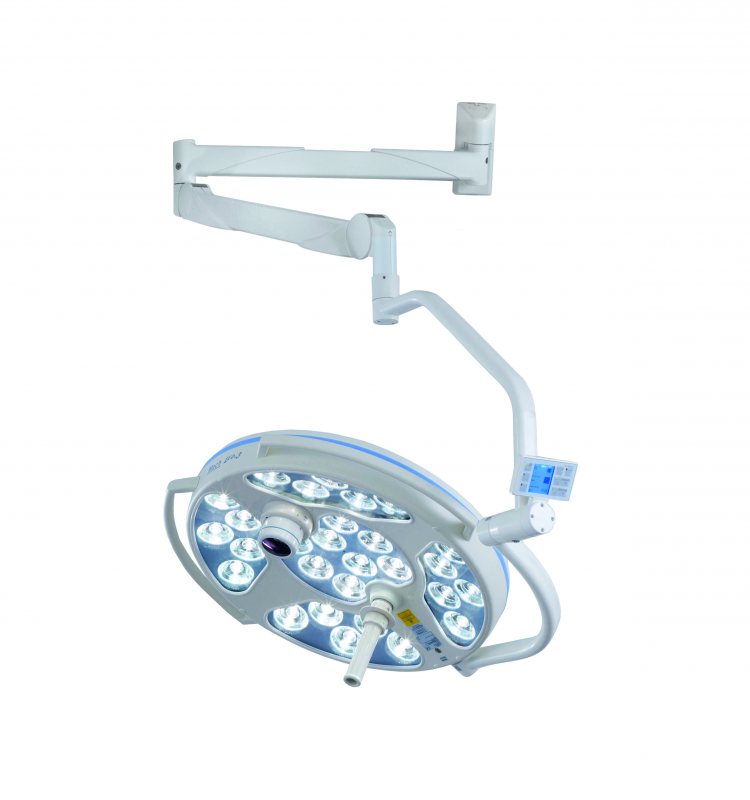

OPT light

GSDMLED 3SC

Technical data:

  • Central light intensity at a distance of 1 meter: 140.000 Lux
  • Light field diameter d10: 170 mm
  • Light field diameter d50: 100 mm
  • Light intensity with one shadower: 63 %
  • Light intensity with two shadowers: 49 %
  • Light intensity on the ground of a normed tube: 100 %
  • Light intensity on the ground of a normed tube with one shadower: 63 %
  • Light intensity on the ground of a normed tube with two shadowers: 49 %
  • Illumination depth 20 %: 1200 mm
  • Illumination depth 60 %: 510 mm
  • Colour rendering index Ra: 95
  • Colour rendering index R9: 94
  • Max. radiation in field in a distance of 1 meter: 490 W/m²
  • Max. radiation in field in a distance of 0,80 meters: 770 W/m²
  • Focusable light field size: 17-28 cm
  • Colour temperature (Kelvin): 4500 K
  • Temperature increase in head area: 0,5 °C
  • Number of LED’s: 28
  • Life span of LED’s: 50.000 h
  • Light head diameter: 57 cm
  • Working distance: 60-150 cm
  • Height adjustment: 118 cm
  • Power consumption: 45 W
  • Operating voltage: DC 24 V – 30 V
  • Current: 1,7 A



Mounting options:

  • Ceiling suspended
  • Mobile on four castors
