IV stands

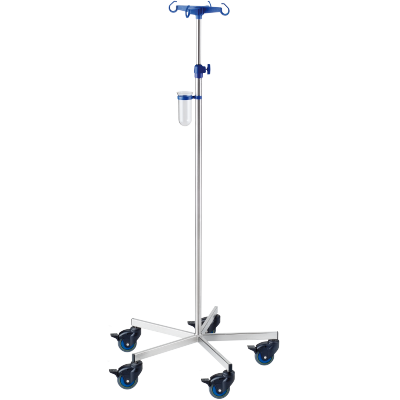

IV stand (normal care)

Tecnhical data:

  • Use: Normal care
  • Material: chromed steel
  • Colour of plastic parts: blue
  • Bottle holder: plastic 4 safety bottle hooks - 2 kg / hook
  • Adjustment: screw safety height adjustment
  • Regulating range: 1.350 - 2.150 mm
  • Tube diameter: 25 / 18 mm
  • Length of outer tube: 1.000 mm
  • Base diameter: 635 mm
  • Base leg profile: 25 x 25 mm
  • Castors: twin castors 50 mm, according to DIN EN 60601 electrically conductive and lockable
  • Base construction: weighted
  • Total / base weight (net): appr. 6,1 kg / 4,5 kg




Options:

  • Material: stainless steel
  • Castors: mono castors 80mm
  • Base weight: non weighted
  • Height adjustment: single handed safety
  • Bottle holder: stainless steel to screw in (2 kg per hook) / stainless steel to plug in (2 kg per hook)
