Oxygen therapy

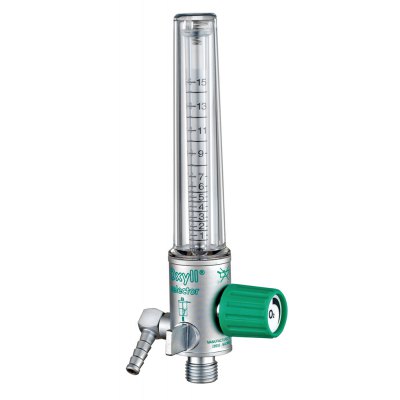

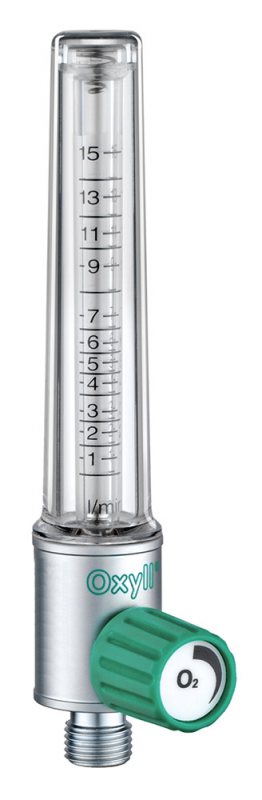

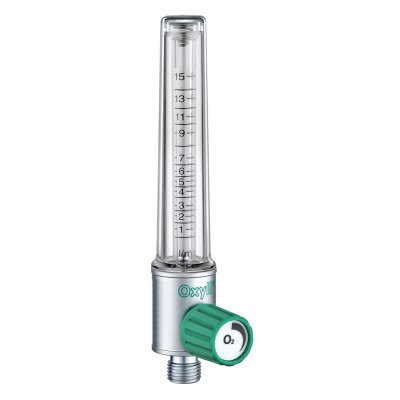

Oxygen flowmeter ball type-single

Chromium–plated brass body, inner and outer tube in polycarbonate, stainless steel float, other parts in brass, polyamide and NBR. This equipment compensates the variations of pressure of the pipeline since it admits all the pressure of the line, maintains the pressure and it provides to the patient the selected flow under atmospheric pressure, through the mask, nasal catheter, humidifier, etc.



Technical data:

  • Gases: Oxygen, Air
  • Dimensions: 145 / 48 mm
  • Weight: 160 g
  • Inlet: Whitworth GAS 1/8”
  • Outlet: DISS O2 9/16” - 18 UNF
  • Pressure: 4.2 Kg/cm2 – 60 psi – 414 kPa
  • L/min: 0 - 15
  • Accuracy: ±10%
  • Fittings: BS, NF, DIN and SS. Other fittings available on request
