Oxygen therapy

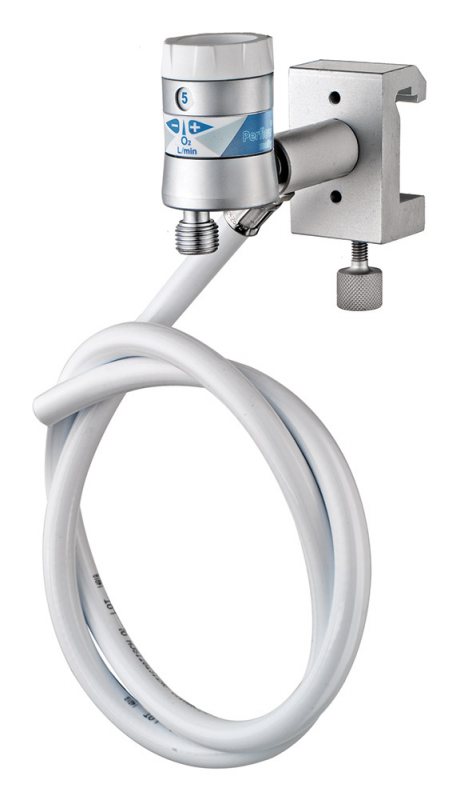

High precision flowmeters with calibrated orifices, a long diameter and great visibility. Control knob with click style positions, makes it more comfortable to use and safer against accidental flow changes. Aluminum body, polycarbonate dial, DISS outlet in chromium-plated brass, rest in stainless steel, NBR, silicone and polyamide. Incorporates a pressure stabilizer micro-regulator that assures the flow accuracy in case of change of the pressure supply, allowing variations in such input pressure.

Variable input pressure.

Technical data:

• Dimensions: 65 x 38mm
• Weight: 112gr
• Inlet: Whitworth GAS 1/8”
• Outlet: DISS O2 9/16” - 18 UNF
• Fittings: BS, NF, DIN and SS. Other fittings available on request
• Pressure: 2.8 - 7bar / 40 - 100psi

Gases: Oxygen, Air

Flow settings*:

Oxygen: 0-1L/min, 0-5L/min, 0-15L/min**, 0-50L/min**

Air: 0-15L/min**, 0-50L/min**

*Flows calibrated at STP conditions (23oC, 101.3 kPa)
**Flowmeter 0-50L/min is indicated for CPAP
