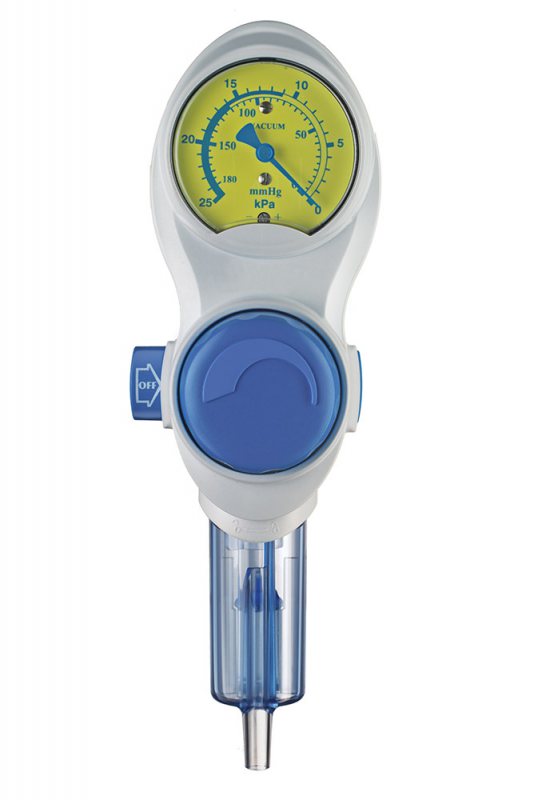

Low vacuum regulator with a precision control mechanism to ensure high-stability and accuracy. Comes with an ON/OFF switch for quick opening and closing. Safety over-vacuum relief valve. Water trap made of polycarbonate (SafetyTrap PC), with an overflow safety system and high efficency particle filter. Materials: body in ABS + PC, vacuum gauge cover in PC, O-rings in NBR and silicone, pneumatic mechanism in POM and TPE, inlet thread female WGAS ¼” in chromed-plated brass. Options: - Hydrophobic antibacterial and antiviral filter (Bacterial Filter) O.D. 15 mm / 9 mm. - Diss connector. Low flow suction regulator. High stability and accuracy.
Materials: body in ABS-PC, vacuum gauge cover in PC, O-rings in NBR and silicone, pneumatic mechanism in POM, inlet thread connection in chromed plated brass.
Fast ON/OFF switch.
Water trap (made in polycarbonate with safety valve and particles filter) or hydrophobic bacterial and virus filter.
Range: 0-20 kPa – 0-150 mmHg
Precision: + 5%
Flow: 90 L/min
Dimensions: 240 x 86 x 86 mm
Weight : 360 gr
LV: basic unit with fitting, water trap, security valve and particle filter.
LV PC1 Diss: with Diss adapter, particle filter and suction jar PC1 Diss directly fitted to the vacuum regulator
LV PC2 : with 1,7 L suction jar and wall support.
LV PC4: with 4 L suction jar and wall support.
LVR: with rail coupling system
LVR PC1 Diss: with rail coupling system and 2 L suction jar.
LVR PC2 Diss: with rail coupling system and 1,7 L suction jar.
