Suction devices

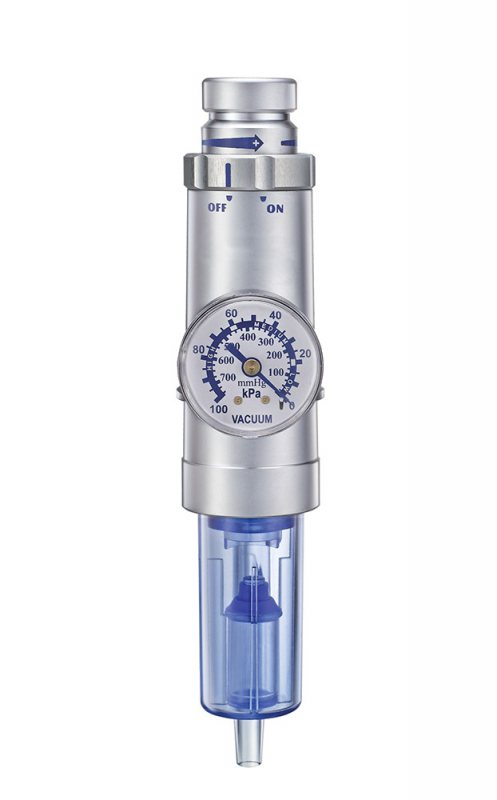

High performance Venturi suction device, to be used in hospitals. Suction device by Venturi with water trap, safety valve and particle filter. It has been designed to provide a high vacuum source in situations where only compressed air or oxygen are available. It is available equiped with BS, NF, DIN and SS probes for air. Also available with oxygen probes.

Technical data:

• Materials: anodised aluminium, brass and polycarbonate.
• Pressure gauge scale: 0 - 100 kPa (1,000 mbar)
• Maximum vacuum pressure at 5 bar: 525 +25 mmHg / 70 +3kPa / 700 +30 mbar
• Maximum suction flow at 5 bar: 28 +2 L/min
• Maximum consumption flow at 5 bar: 45 +4 L/min
• Inlet thread (without probe): Female 1/8" Whitworth Gas
• Dimensions: 210 x 45 x 85 mm.
• Weight: 450 gr
