Suction devices

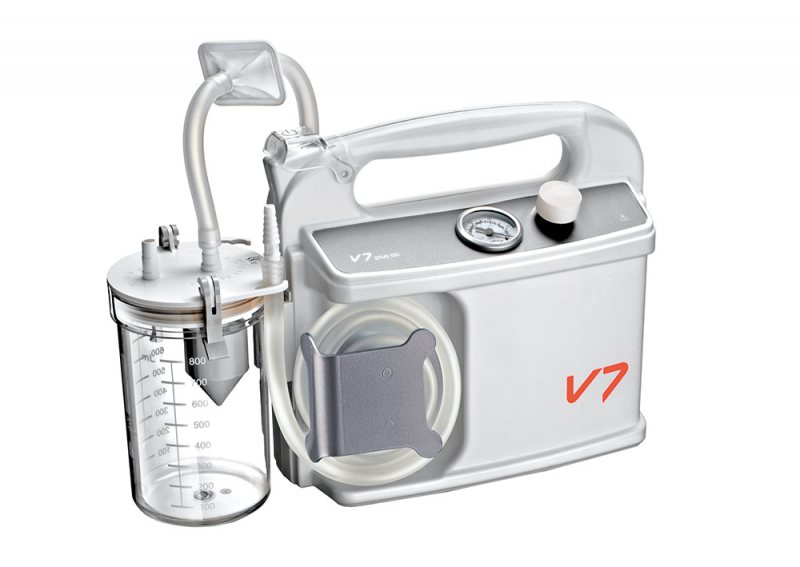

Suction unit-portable

Portable suction units for medical applications of high quality and performance.

Technical data:

  • ABS ergonomical case with handle and rear anchorage tested to resist up to 10 g (according to European norm UNE-EN-1789: 2000).
  • Oil-free, no maintenance piston pump.
  • Vacuum manometer from/to 0-100 kPa (0- 760 mmHg)
  • Vacuum control knob.
  • LEDS (depending on model)
  • Noise level: 49± 1,5 dB (AS) 1 m.
  • Water resistant ON/OFF switch. Models including battery come with additional switch protector and LED´s display.
  • 1 L PC1 polycarbonate collection jar (autoclavable at 121 ºC). Overfill safety valve included. Also available with 1.7 L collection jar and supports compatible with the main standards of canister and disposable liner systems.
  • Bacteria filter and suction hose included.
  • Weight: 2,2 - 4,5 kg (depending on  model)
  • Dimensions: 385 x 155 x 255 mm
