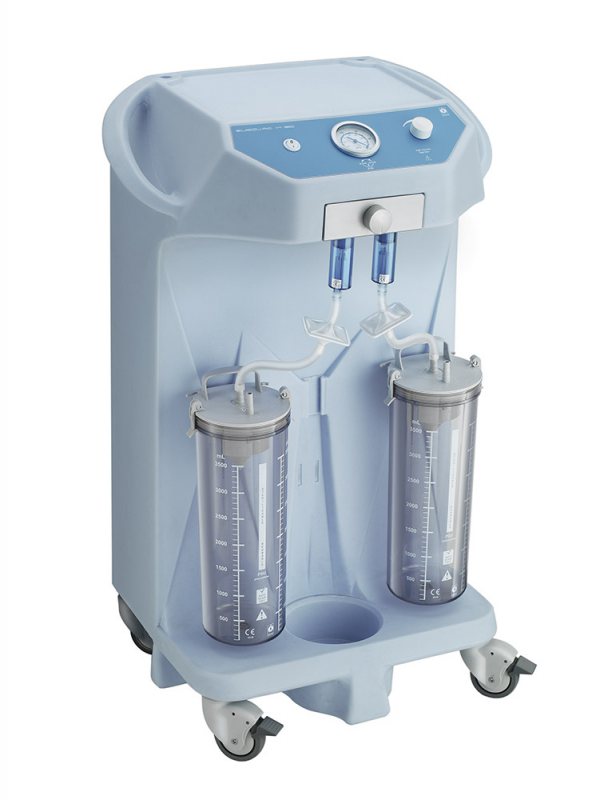

High vacuum electric suction unit
The unit is designed to integrate a system of electrical suction, one of the highest performance known in the market, within a structure of maximum resistance. Intended for the following types of application: suction in the surgical field, the airway, endoscopic, obstetrical with a silicone suction cup and liposuctions. It can be used with adults and paediatrics.
Manufactured in high-resistance polypropylene, provided with 4 Ø80mm wheels (1 of them antistatic, 2 of them with brakes).
High flow Vacuum Pump (ranges 90 L/min). Double piston-cylinder type, oil free, non-maintenance required.
2 polisulfonate collection jars (PSU), (4 litres – scale up to 3500ml) autoclave at 1350C, with safety valve to prevent overfilling. Collection jar support according to EN 12218:1998.
Selector knob for double collection jar exchange, 2 settings (right and left), provided with a filter device for each jar: water trap including safety valve + particle filter.
Hydrophobic PTFE bacteria filter, guaranteeing 99,95% particle retention and 99,99% bacterial challenge efficiency.
On/Off Switch. Precise, steady.
Suction pressure-regulating Knob.
High Vacuum Gauge (0-100kPa / 0-760 mmHg) using a high-visibility display (Ø67mm).
On/Off foot-operated pedal included and additional installation for an extra optional regulating pressure pedal.
3m PVC suction tube (Ø8mm inside – Ø13 mm outside).
3m electric cable housing.
Maximum pump flow: 91 L/min
Maximum vacuum: 93 kPa - 933 mbar - 700 mmHg
Noise level: 48.5-51.5 dB (AS)/1 m
Power: 300 W
Intensity: 1,7 A
Voltage: 200 – 240 Vac (50-60 Hz) * 100 - 120 Vac available
Dimensions: 890 x 580 x 440 mm
Weight: 24,6 kg
Product life: 10. 000 h. (suction pump)
Storage temperature: -40ºC up to 70ºC -104ºF up to 158ºF
Operating temperature: 5ºC up to 40ºC 41ºF up to 104ºF
Quality requirements: ISO 10079-1:1999 93/42/CEE. Class IIa ISO IEC 60601-1:2006: Class I, Type BF, IPX1
